Prismatic and bale loaders AM Special Serie
Bale-rollerholder with articulated floating hayfork.
AM SPECIAL automatic patent bale-rollerholder.

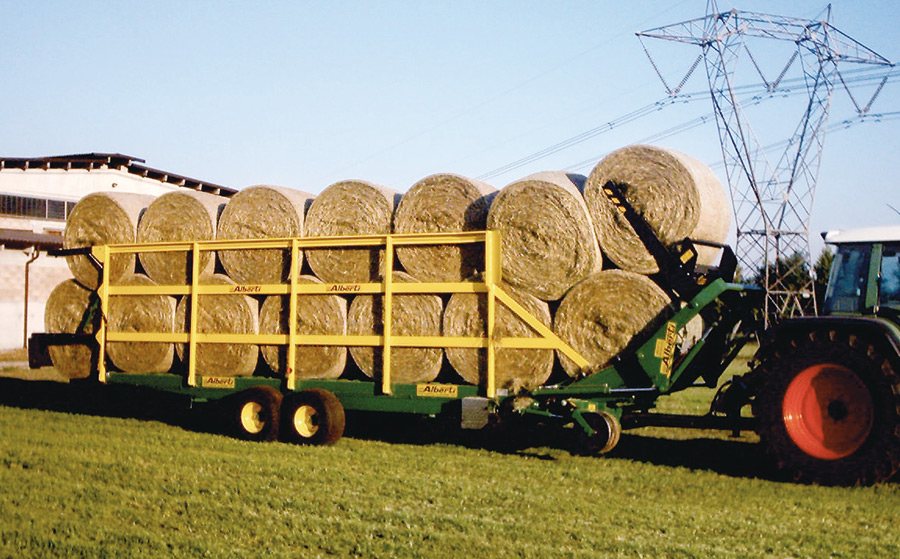

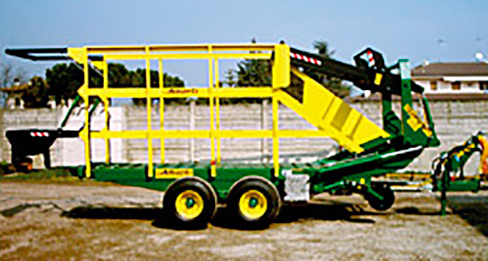

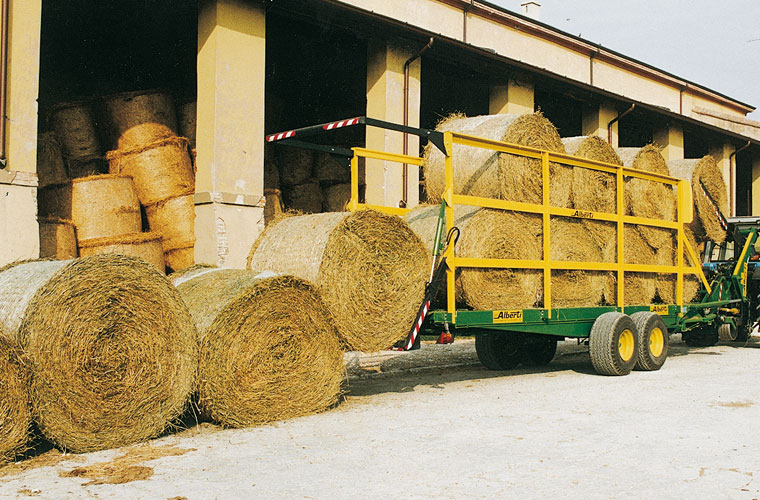

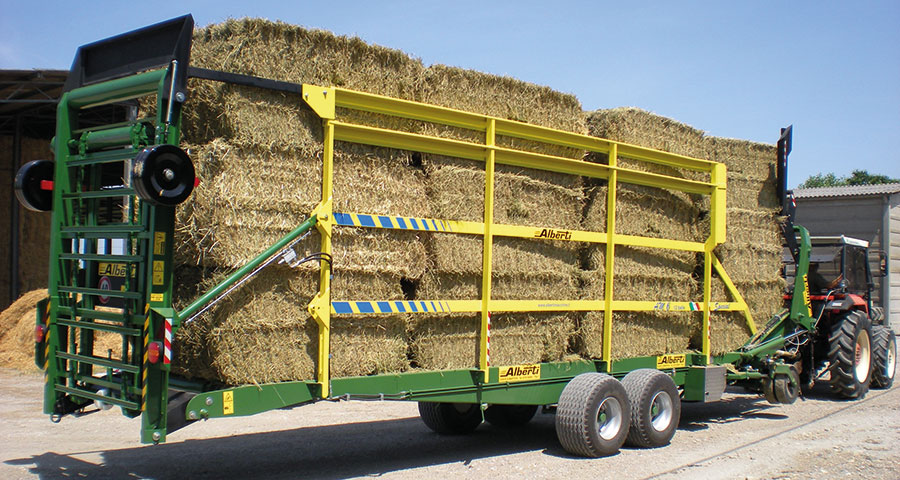

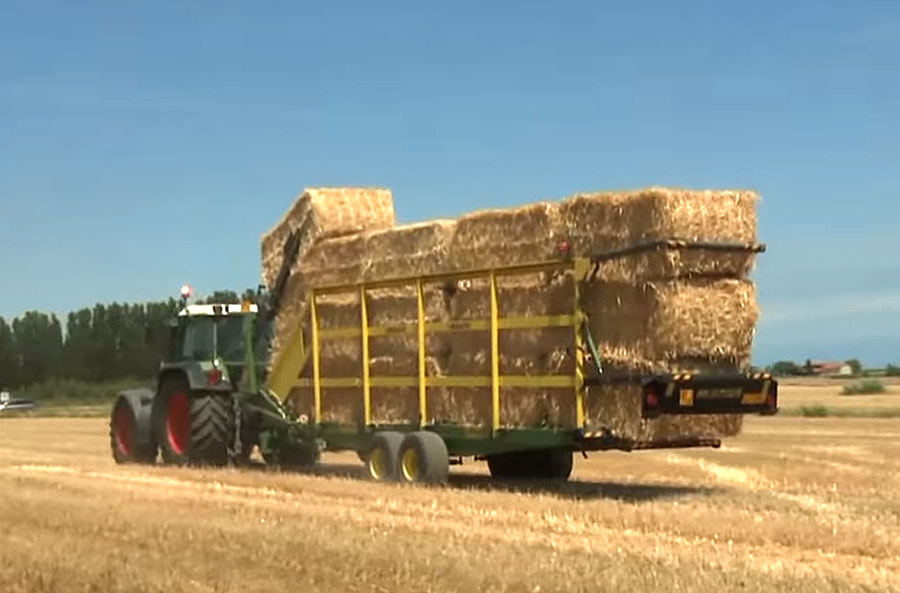

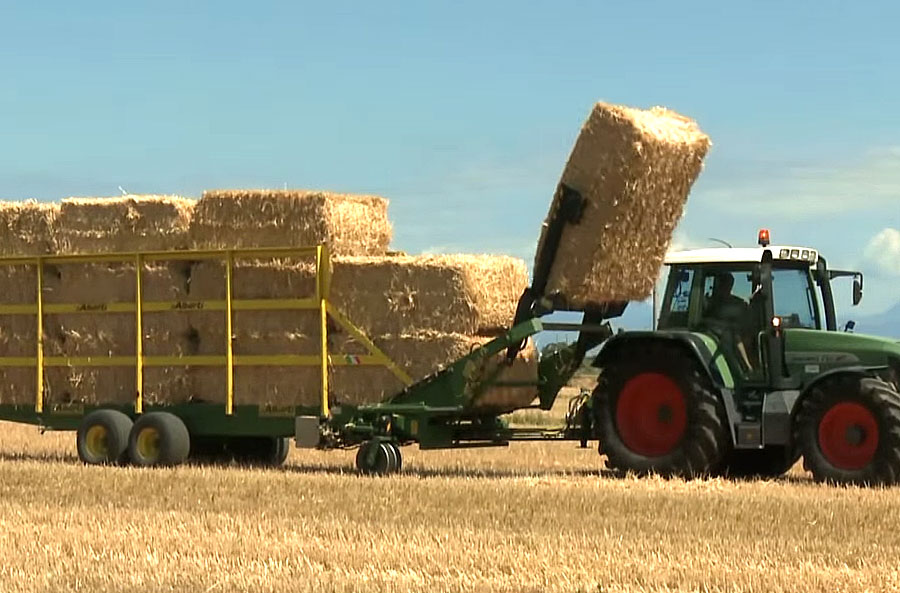

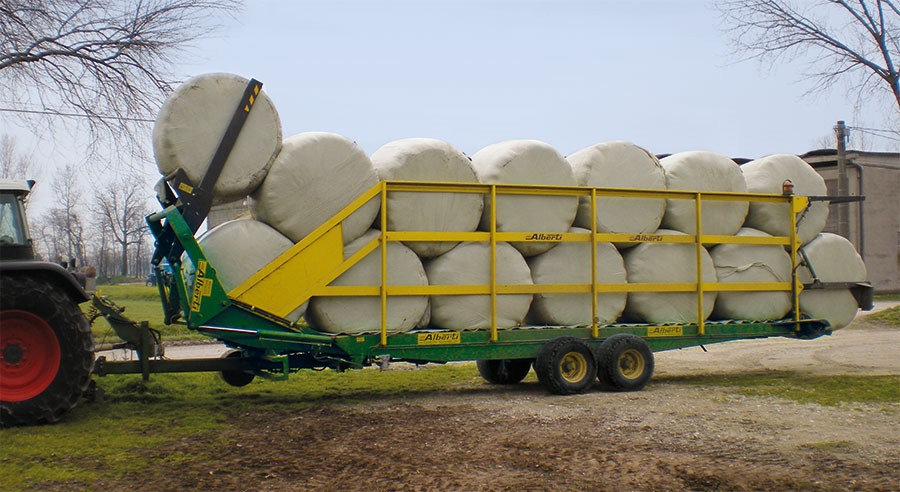

The AM SPECIAL bale-rollerholder is the most functional answer for collecting, transporting and unloading cylindrical or prismatic bales of both dry and green forage.

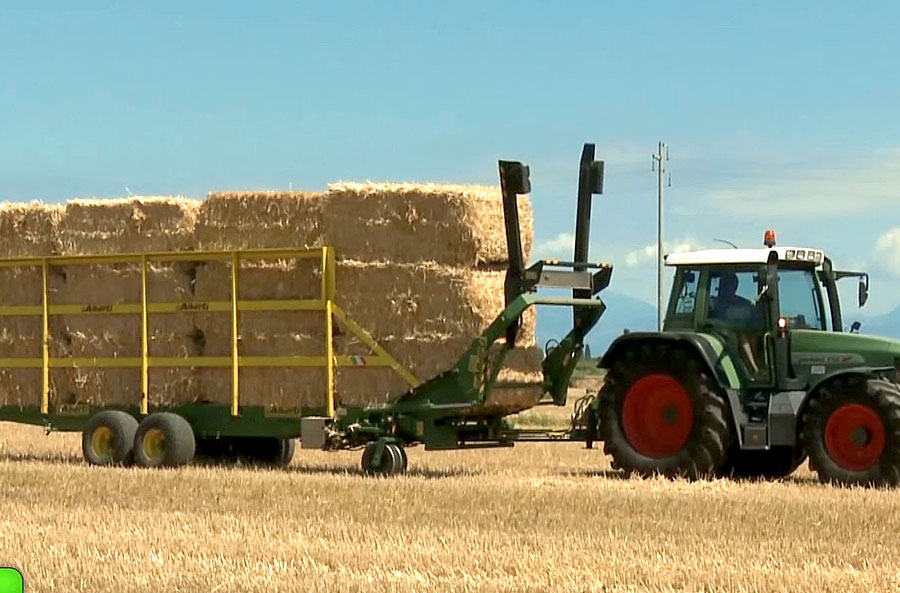

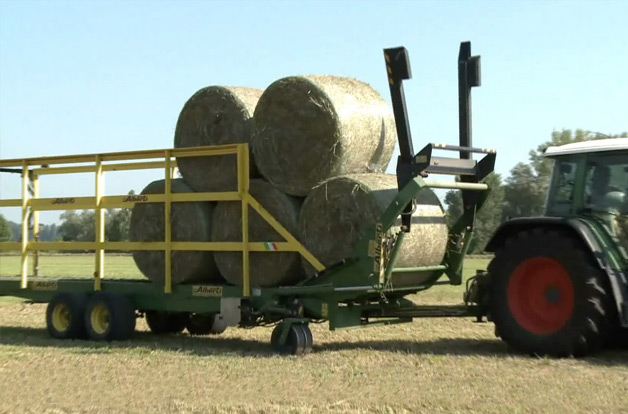

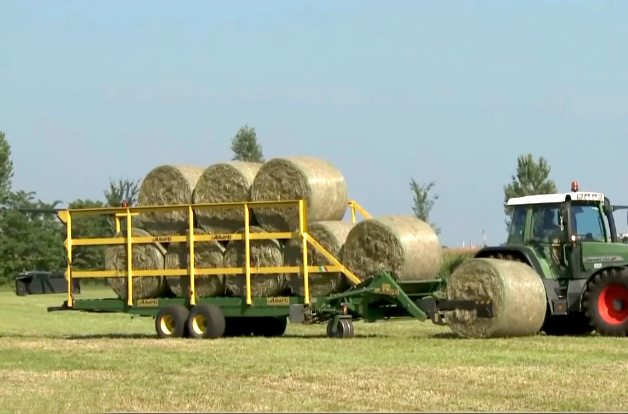

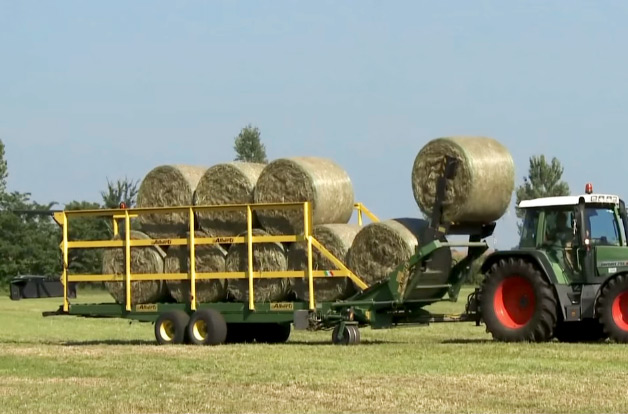

Thanks to the articulated floating loading hayfork and the entirely hydraulic system, the cylindrical bales are quickly collected entirely automatically as they leave the press, by a single tractor driver without ever having to get off the tractor.
The floating system of the loading gripper means the machine can be used on any ground, even the roughest.
AM SPECIAL is the fruit of forty years’ experience in this specific field that is hard to match (Patented).
Technical characterictics:
| AM/5 SPECIAL | AM/6 SPECIAL | AM/7 SPECIAL | |
|---|---|---|---|
| Bale's capacity Ø 150x120 | n° 8 | n° 12 | n° 14 |
| Bale's capacity Ø 180x150 | n° 6 | n° 10 | - |
| Bale's capacity Ø 180x120 | n° 6 | n° 10 | n° 12 |
| Prismatic bale's capacity 90 x120 | n° 8 | n° 12 | n° 14 |
| Loading time | 6 - 8 min. | 8 - 10 min. | 10 - 11 min. |
| Flatcar lenght | 6,00 m | 9,00 m | 10,50 m |
| Flatcar breadth | 1,45 m | 1,45 m | 1,45 m |
| Total lenght | 7,50 m | 10,60 m | 12,00 m |
| Maximum height when empty | 3,00 m | 3,00 m | 3,00 m |
| Maximum height at full load | 3,80 m | 3,80 m | 3,80 m |
| Weight when empty (approx.) | 2.600 kg | 3.700 kg | 4.300 kg |
| Maximum capacity | 6.000 kg | 10.000 kg | 11.000 kg |
| Axles | n° 1 - fixed / n° 2 - balancer | n° 2 balancer | n° 2 - steering |
| Tracks | 2,30 m | 2,30 m | 2,30 m |
| Wheels | n° 2 / n° 4 (400x15.5 - 14 P.R.) | n° 4 (400x15.5 - 14 P.R.) | n° 4 (400x15.5 - 16 P.R.) |
| Revs per minute | 300 - 350 | 300 - 350 | 300 - 350 |
Braking system AM Special:
| Braking system | Max. capacity |
|---|---|
| Hydraulic IDRL | 6.000 kg |
| Pneumatic | 10.000 / 11.000 kg |
| Hydraulic IDRP | 10.000 / 11.000 kg |
On request:
-
• Remote controls with flexible cables.
-
• Controls with push-button panel solenoid valve.
-
• Radio-controlled.
-
• Steering rear axle.
-
• Revolving flashing flight.
-

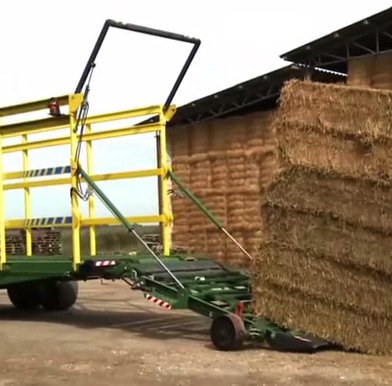

• Pedana posteriore di scarico
- Hydraulic foot.
- Oversized wheels 400x15.5 16 P.R.
- Industrial wheels - radyal type.
